PixFra Thermal imaging camera Ranger PFI-R635

The monocular thermal imaging device captures sharp thermal images at a high frame rate. The result is a clear, unobstructed view of moving targets and from moving vehicles. The camera is designed to improve situational awareness at any time of day. It can detect people, animals and objects in total darkness, in fog and through harsh light, providing law enforcement officers, hunters and outdoor enthusiasts with reliable thermal imaging in harsh conditions. It can be used for a wide range of outdoor scenarios, including hunting, rescue operations, wildlife observation and more. Includes case, USB-C cable, cleaning cloth, hand strap, neck strap.

Features:
Pro-grade image sensor: The Ranger features a 12μm detector with up to 640 x 512 resolution and <30mk detector sensitivity. Even in heavy rain, fog or cold harsh environments, details can be perfectly displayed and the details of target features can be clearly observed.
50Hz display refresh rate
IP67 water resistant
35mm lens with a detection distance of 1,800m
-30 °C minimum operating temperature


Functions:

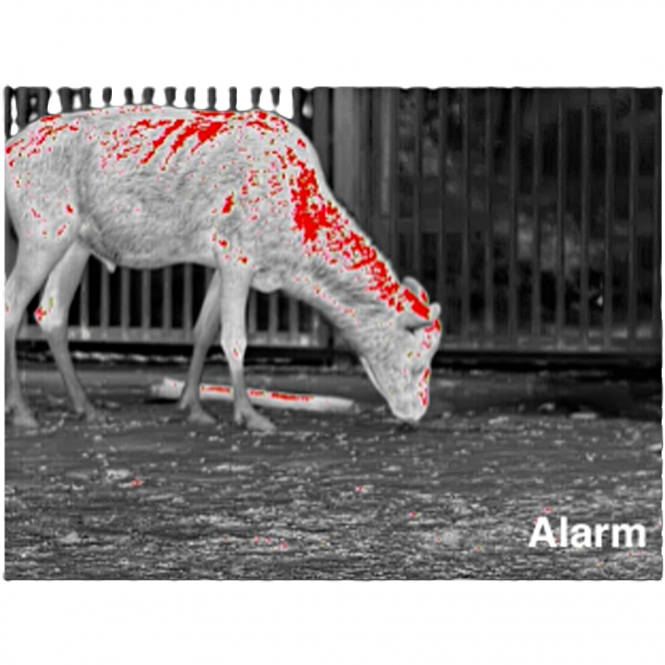

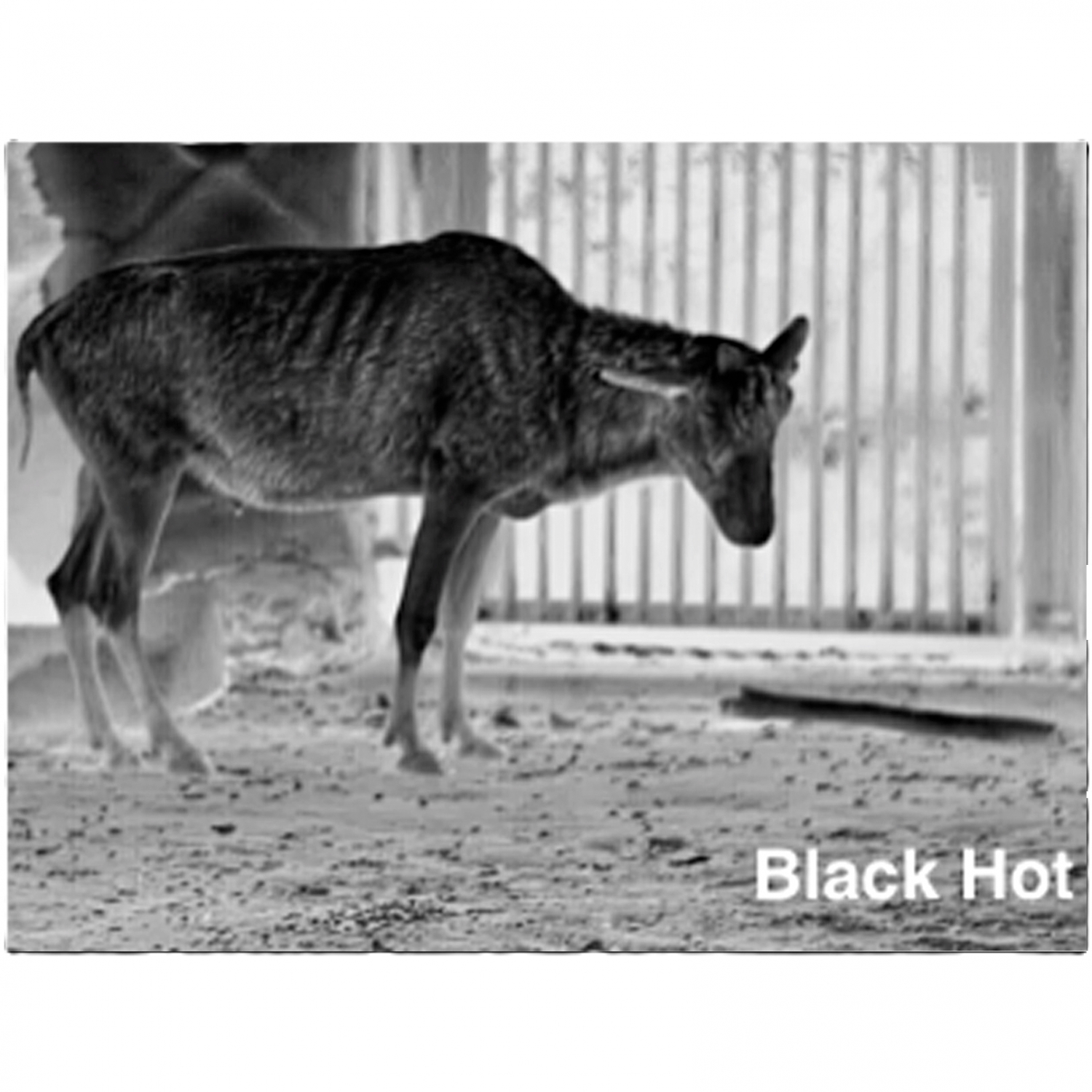

Coloring: Different coloring modes show different effects.
Digital zoom: Supports 1x, 2x, 4x and 8x digital zoom. The number may vary depending on the device.
Image sensor: The Ranger PFI-R635 has an image sensor of 640 x 512 pixels 12μm ≤30 mK
Lens: The device has a 35mm lens
Field of view:The field of view is 100 m / 30.4 m
Weight: The Ranger R635 weighs approx. 495g
Battery life: The battery life is 6.5 hours
Battery type: The device is an integrated battery

Technical data:

Sensor: Display rate (Hz) 50 / spectral range 12μm
Optics: Display resolution 1440 x 1080 / field of view @100m 21.6 m
Interface: Sensor Resolution 640 × 512
Dual Lens: No
Laser Range Finder: No
Mobile App: Yes
Battery: Battery Life (h) 6.5
